Drill Machine
Leading Manufacturers, Exporters and Wholesaler of All Geared Radial Drilling Machine, Pillar Drill Machine and Radial Drill Machine from Rajkot.
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Metal |
| Color | Green |
| Usage | Metal Drilling |
| Power Source | Electric |
| Dimensions | 1200x800x1600 Mm |
| Speed Options | Multiple |
| Brand Name | Accumax |

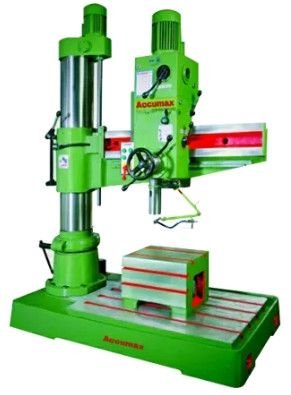

With firm commitment to quality, we are manufacturing and exporting a comprehensive range of All Geared Radial Drilling Machines 50 mm. The All Geared Radial Drilling Machines offered by us are widely used to drill steel and cast iron in various industries. Clients can avail these machines in various specifications, sizes, shapes as per their requirements. Our range finds its wide application in engineering and automobile industries.
Features
- Robust Construction
- Supreme Quality
- Corrosion Resistance
| Business Type | Manufacturer, Exporter, Supplier |
| Drilling Diameter | 25 - 60 Mm |
| Machine Type | Semi-Automatic |
| No Load Speed | 1440 RPM |
| Item Weight | 300 Kg |
| Power Consumption | 1118 W |
| Drilling In Steel | 25 Mm |
| Table Size | 390 Mm |
| Overall Base Size | 600 X 390 Mm |
| Spindle Travel | 252 Mm |
| Column Length | 1460 Mm |
| Overall Height With Pulley Guard | 1740 Mm |
| V Belt Section | B - 52 |
| Net Weight | 260 Kgs. |
| Motor Power | 1 HP |
| Speed | 1440 RPM |
| Phase | 3 |
| Column Diameter | 87.5 Mm |
| Voltage | 440 V |
| Spindle Centre To Back Distance | 254 Mm |
| Spindle Nose To Table Distance | 685 Mm |
| Spindle Nose To Base Distance | 1080 Mm |
| Table Travel | 310 Mm |
| Taper In Spindle | M.T.-3 |
| Numbers Of Speed | 8 Speed |
| Range Of Speed | 73 X 1980 RPM |
| Brand Name | Accumax |
Our organisation holds expertise in offering a superior quality range of Pillar Drill Machines. The machines offered by us are widely used in various drilling and allied applications. Moreover, the machines offered by us have demanded their economical rates. Clients can avail these machines in various diameters and thickness as per their requirements
Features
- Low Maintenance
- Corrosion Resistance
- Efficient Performance
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Drill Machine |
| Drilling Diameter | 25 - 60 Mm |
| Item Weight | 200 Kg |
| Variable Speed | Variable Speed |
| Warranty | 1 Year |
| Automatic Grade | Semi-Automatic |
| Overall Height | 2250 Mm |
| Power Consumption | 3728 W |
| Brand Name | Accumax |

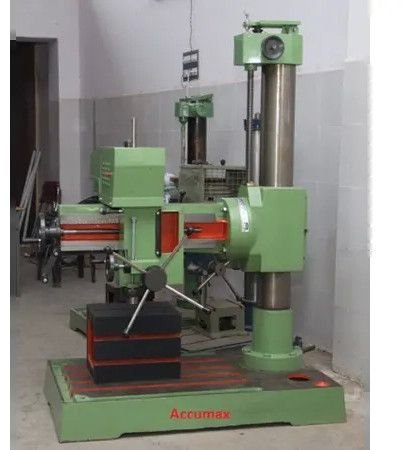

We have gained expertise in manufacturing a wide range of Heavy Duty Radial Drilling Machines etc. These machines are widely used to deliver stable performance during drilling process. In addition to this, the machines offered by us provide flawless operations for longer hours due to the drilling heads with longest possible radius from the columns. Our range of machines are used in woodworking, metalworking and construction applications.
