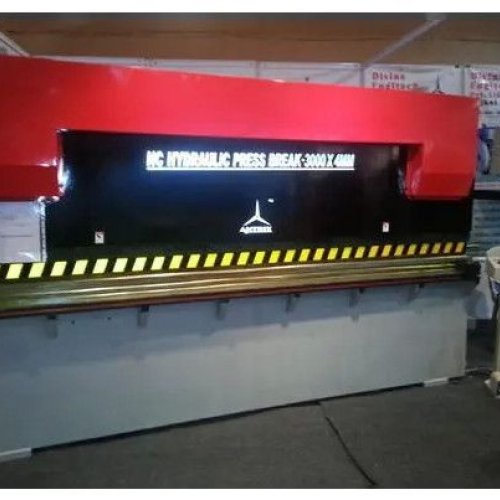

Hydraulic Press Brake Machine

Link Copied

Edit

Business Type	Manufacturer, Exporter, Supplier
Model	DHPB 215
Tonage	20
Banding Capacity For MS	1.61500mm, 21250 Mm
Click to view more

Product Details

Table Width

140 Mm

Appr Pressing Return Speed

25-07-30

HP Power

Weight

1600 Kgs

Clear Pass

1000 Mm

Ram Stroke

100 Mm

Open Height

250 Mm

Throat Depth

100 Mm

Brand Name

Accumax

We are instrumental in offering a quality range of Hydraulic Press Brake Machines in all sizes. These Hydraulic Press Brake Machines are manufactured using premium quality raw materials and the latest technology to ensure their smooth function and maximum output.

Features

Corrosion Resistance
Longer Functional Life
High Strength

Yes! I am interested

Specification

Model No.	Machine Size	Tonnage	Table Length	Table Width	Clear Pass	Ram Stroke	Open Height	Throat Depth	Speed (Advance-Working-Return)	Motor HP	Packing Dimension (Length x With x Height)	Weight (Approx.)
SHPB – 1	1500 x 2.5	30	1525	125	1050	100	250	200	35-9-35	3	1700 x 1050 x 1900	1500
SHPB – 2	2000 x 2	30	2030	125	1500	100	250	200	30-07-1930	3	2200 x 1150 x 1900	1750
SHPB – 3	1500 x 3	40	1525	150	1500	100	250	200	40-8-40	3	1700 x 1050 x 1900	2100
SHPB – 4	2500 x 2	40	2540	150	2000	100	250	200	40-8-40	3	2700 x 1150 x 1900	2500
SHPB – 5	1500 x 4	50	1525	150	1050	100	250	200	35-7-35	5	1700 x 1050 x 1900	2300
SHPB – 6	2000 x 3	50	2030	150	1500	100	250	200	35-7-35	5	2200 x 1050 x 1900	2600
SHPB – 7	2000 x 4	65	2030	150	1500	150	330	200	30-05-1930	5	2200 x 1500 x 1900	2750
SHPB – 8	2500 x 3	65	2540	150	2050	150	330	200	30-05-1930	5	2700 x 1200 x 2000	3600
SHPB – 9	2000 x 5	80	2030	180	1500	150	330	250	40-6-47	7.5	2700 x 1300 x 2050	3700
SHPB – 10	2500 x 4	80	2540	180	2050	150	330	250	40-6-47	7.5	2700 x 1550 x 2300	4500
SHPB – 11	3000 x 3	80	3125	180	2500	150	330	250	40-6-47	7.5	3350 x 1550 x 2300	2400
SHPB – 12	2000 x 6	100	2030	180	1500	150	330	250	40-6-47	7.5	2200 x 1550 x 2300	4800
SHPB – 13	2500 x 5	100	2540	180	2050	150	330	250	40-6-47	7.5	2700 x 1550 x 2300	5100
SHPB – 14	3000 x 4	100	3125	180	2500	150	330	250	40-6-47	7.5	2700 x 1550 x 2300	5700
SHPB – 15	4000 x 4	100	4065	180	3100	150	330	250	40-6-47	7.5	4250 x 1650 x 2300	6800
SHPB – 16	2500 x 6	125	2540	180	2050	150	350	300	40-6-40	10	2750 x 1650 x 2500	6000
SHPB – 17	3000 x 5	125	3125	180	2500	150	350	300	40-6-40	10	3350 x 1650 x 2500	6800
SHPB – 18	4000 x 4	125	4065	180	3100	150	350	300	40-6-40	10	4250 x 1650 x 2500	8000
SHPB – 19	2500 x 8	160	2540	230	2050	150	350	300	35-6-40	15	2750 x 1800 x 2500	7000
SHPB – 20	3000 x 6	160	3125	230	2500	150	350	300	35-6-40	15	3350 x 1650 x 2500	7800
SHPB – 21	4000 x 5	160	4065	230	3100	150	350	300	35-6-40	15	4250 x 1650 x 2500	10000
SHPB – 22	2500 x 10	200	2540	230	2050	200	400	300	35-6-40	20	2750 x 2050 x 2750	10000
SHPB – 23	3000 x 8	200	3125	230	2500	200	400	300	35-7-35	20	3350 x 2050 x 2750	11000
SHPB – 24	4000 x 6	200	4065	230	3100	200	400	300	35-7-35	20	4350 x 2050 x 2750	12500
SHPB – 25	2500 x 12	250	2540	300	2050	200	400	300	35-7-35	25	2850 x 2200 x 2850	9500
SHPB – 26	3000 x 10	250	3125	300	2500	200	400	300	35-6-40	25	2850 x 2200 x 2850	11700
SHPB – 27	4000 x 8	250	4065	300	3100	200	400	300	36-6-40	25	4400 x 2100 x 2900	12500
SHPB – 28	3000 x 12	300	3125	300	2500	200	400	300	30-06-1935	30	3350 x 2150 x 2900	12000
SHPB – 29	4000 x 10	300	4065	300	3100	200	400	300	30-06-1935	30	4400 x 2150 x 2900	14000
SHPB – 30	4000 x 12	400	4065	350	2500	250	500	350	30-06-1935	40	4400 x 2200 x 3050	19000
