| Business Type | Manufacturer, Exporter, Supplier |
| Type | Lathe Machine |
| Duty | Extra Heavy Duty |
| Material | Metal |
| Click to view more | |
Product Details
Color
Grey
Usage
Industrial
Power Source
Electric
Brand Name
Accumax

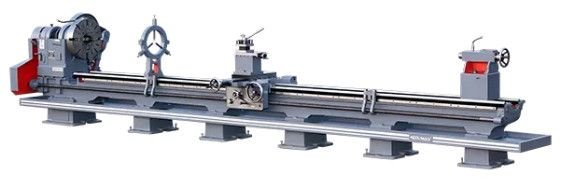

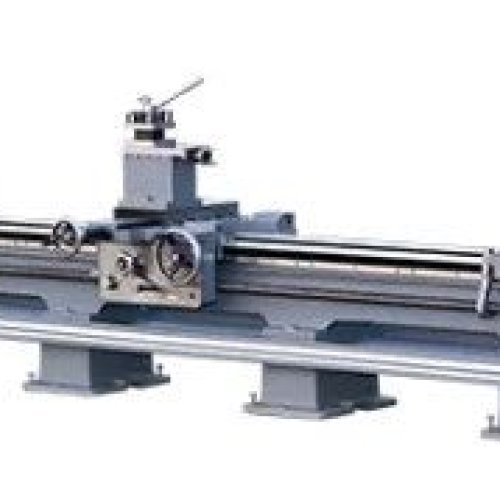

We present lathe machines for heavy duty operations which are preferably used in heavy duty industrial applications as well as precise machining applications like Automobile, electrical, electronic, etc. This tool is designed with the most qualified features that provide consistency in long term production requirement.
Standard Accessories
- Chuck Plate
- Motor Pulley
- Tool Post Key
- Dead Centers -2 Nos.
- Center Adopter
- Change Gear – B.S.W-13
- Change Gear – M.M.-3
Specification
| Height of centers | 400 | 550 |
| Bed Width | 450 | 600 |
| Swing over bed | 900 | 1200 |
| Swing over cross slide | 500 | 750 |
| Swing in gap | 1100 | 1400 |
| Spindle bore | 100 | 100 |
| Spindle R.P.M. | 400 | 25-400 |
| Spindle Speed | 6 | 6 |
| Tail Stock Sleeve Travel | 250 | 300 |
| Tail Stock Ram Dia | 75 | 100 |
| Cross Slide Travel | 450 | 600 |
| Main Motor | 5 H.P./1440 RPM | 7.5 H.P./960 RPM |
| Taper in Tail Stock RAM | MT-5 | MT-5 |
| Lead Screw Dia | 45 | 50 |
| Lead Screw Threads | 2 | 2 |
| Length of Bed | 3000-12500 | 3000/12500 |
| Admit between Center | 1750-11300 | 1500-10800 |
