| Business Type | Manufacturer, Exporter, Supplier |
| Main Motor | 3 HP |
| Feed Motor | 2 HP |
| Arbor Diameter | 25.4 mm |
| Click to view more | |
Product Details
Automation Grade
Semi-Automatic
Type
Milling Machine
Sizes Available
All Sizes For Technical Institutes And Allied Industries
Technology
Latest Technology Machines
Features
Long Service Life, Efficient Operations
Demand
Widely Demanded By Customers
Brand Name
Accumax

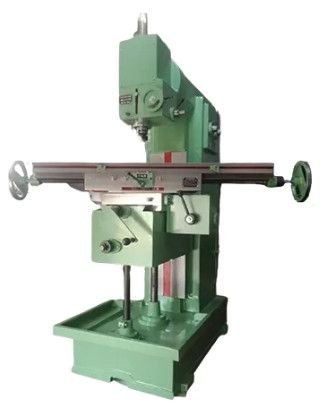

We bring forth for our clients a wide collection of Vertical Milling Machines. The machines offered by us are available in all sizes for technical institutes as well as allied industries. Universal Milling Machines no. 1.5,2,3 & 4 offered by us are manufactured using the latest technology machines. Owing to their features like long service life and efficient operations, these machines are widely demanded by the customers. Moreover, clients can avail these machines in various specifications as per their requirement.
Specification
| Automation Grade | Semi-Automatic |
| Brand | Accumax |
| Type | Milling Machine |
| Pattern | Vertical |
| Model | No. 1 |
| Working Surface | 1300 x 300 mm |
| Main Motor | 3 HP |
| Feed Motor | 2 HP |
| Arbor Diameter | 25.4 mm |
| Center Distance Between T slot | 70 |
| Longitudinal Travel X | 700 |
| No of Feeds | 12 |
| Vert Feed | 3-70/Min |
| Rapid Vertical Min | 175 |
C Type Vertical Milling Machines
| Model | No.3 | No.4 |
| TABLE | ||
| Working Surface | 1400 x 330 | 1600 x 350 |
| Center Distance Between T-slot | 80 | 85 |
| Longitudinal Travel – X | 800 | 1000 |
| Cross Travel – Y | 260 | 340 |
| Vertical Travel – Z | 510 | 600 |
| FEEDS | ||
| No. of Feeds | 12 | 12 |
| Long. Feed/Min | 23 – 420 | 23 – 420 |
| Vert. Feed/Min | 3 – 70 | 3 – 70 |
| Rapid long Cross/Min | 1050 | 1050 |
| Rapid Vertical Min | 175 | 175 |
| SPINDLE | ||
| Speed RPM/Speed | 40 to 1200 (12) | 40 to 1200 (12) |
| Spindle Taper | ISO 40 | ISO 40 |
| Arbor Diameter | 25.4 | 32 |
| Main Motor | 5 H.P. | 7.5 H.P. |
| Feed Motor | 2 H.P. | 3 H.P. |
