Product Details
Power Source
Electric
Capacity
10-100 Tons
Speed
60 Strokes Per Minute
Dimensions
1200 X 800 X 1800 Mm
Brand Name
Accumax

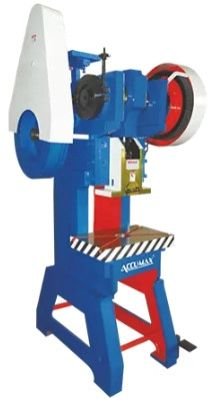

Our clients can avail from us an exquisite range of Mechanical Power Press. These presses are manufactured using superior quality raw material and advanced technology. Moreover, the Power Press Machines offered by us are offered in compliance with the specifications provided by the customers at market leading rates.
Features
- Corrosion resistant finish
- Sturdy design
- Noise free operation
Specification
| Capacity | Ton | 10 | 20 | 30 | 50 | 80 | 100 | |
| Stroke Length | Max | mm | 10/01/50 | 20-75 | 30-90 | 50-100 | 80-112 | 100-125 |
| Number of Stroke | SPM | Nos. | 75 | 60 | 60 | 55 | 50 | 45 |
| Working Bed | L to R | mm | 406 | 457 | 508 | 660 | 711 | 813 |
| F to B | mm | 241 | 305 | 381 | 406 | 508 | 558 | |
| Hole in Ram | Dia. | mm | 25 | 32 | 32 | 38 | 45 | 50 |
| Bed to Ram Dist. | L | mm | 178 | 228 | 267 | 305 | 381 | 406 |
| Opening in Bed | Dia. | mm | 76 | 83 | 89 | 102 | 127 | 152 |
| Floor to Top of Bed | Height | mm | 750 | 790 | 800 | 800 | 800 | 850 |
| Electric Motor | Kw | 0.75 | 1.5 | 2.25 | 3.75 | 5.62 | 7.5 | |
| Hp | 1 | 2 | 3 | 5 | 7.5 | 10 | ||
| Weight Approx | Kg | 470 | 900 | 1400 | 2500 | 3500 | 5625 |
