| Business Type | Manufacturer, Exporter, Supplier |
| Automation Grade | Semi-Automatic |
| Type | Shaping Machine |
| Material | Metal |
| Click to view more | |
Product Details
Color
Blue
Application
Heavy Duty Shaping
Power Source
Electric
Brand Name
Accumax

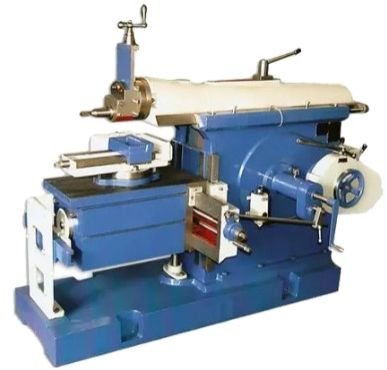

We are the leading supplier of shaping machines of all sizes for technical institutes as well as allied industries. We offer 24 Inches Heavy Duty Shaper Machines. It is widely used for metal shaping processes in several industrial manufacturing units. It produces high operational speed and output of our machines.
Specification
| Machine Size | 12″ | 18″ | 24″ | 30″ | 36″ |
| Maximum stroke | 14″ | 20″ | 26″ | 32″ | 38″ |
| Len of Ram | 26″ | 36″ | 50″ | 58″ | 66″ |
| Max. dist. Of Table to Ram | 9″ | 15″ | 19″ | 20″ | 20″ |
| Min. dist. Of table to Ram | 1/2″ | 2″ | 2″ | 2″ | 2″ |
| Max. vertical travel to tool slide | 5″ | 4″ | 7″ | 7″ | 7″ |
| Len. And width to table top. | 12″x9″ | 18″x12″ | 24″x15″ | 30 1/2″x16″ | 36″x18″ |
| Len and width of table slide | 24″x10″ | 30″x11″ | 37 1/2″x12″ | 44″x13″ | 48″x14″ |
| Len of cross slide | 24″ | 30″ | 37 1/2″ | 44″ | 48″ |
| Width of Ram | 8 1/2″ | 10″ | 12 1/2″ | 12 1/2″ | 13″ |
| No of speeds | 4 | 3 | 4 | 4 | 4 |
| HP Required (1440) | 1 | 2 | 2 | 3 | 5 |
