Product Details
Country of Origin
India
Height Of Centers
165
Swing Over Bed
315
Swing Over Side
190
Swing In Gap
500
Width Of Bed
235
Hole Through The Spindle
40
Toper Bore In Spindle
M.T.-5
Spindle Nose
6 T.P.I.
Range Of Spindle Speed
40 To 950 R.P.M.
Spindle Speed
8
Metric Threads
1 To 6
Inches Threads
4 To 24 T.P.I.
Lead Screw Diameter
25.4
Lead Screw Threads
4 T.P.I.
Electric Motor
1 H.P., 1440 Rpm
Tail Stock Spindle Dia
38
Taper Bore In Spindle
M.T.-3
Tails Stock Spindle Travel
125
Compound Slide Swivelling Degree
45-0-45
Cross Slide Size
150 X 350
Cross Slide Travel
175
Top Slide Travel
100
Admit Between Centers
600/1000
Length Of Bed
1370/1800
Brand Name
Accumax

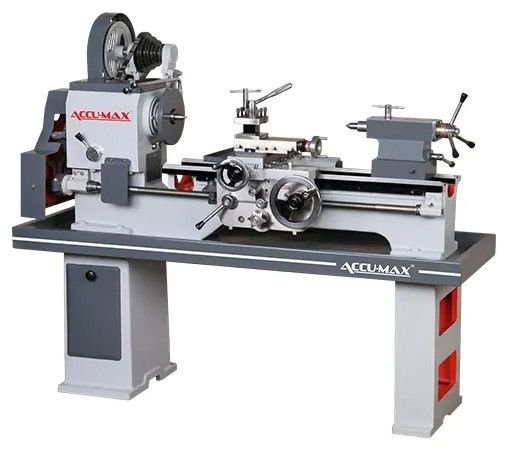

Our range of Light Duty Lathe Machines is manufactured from a quality-tested raw material. These lathes can satisfy the various turning requirements of a very wide range of different Industries offering an affordable solution to higher machining accuracy and better surface finish. We also meet customized requirement for our client’s benefit.
