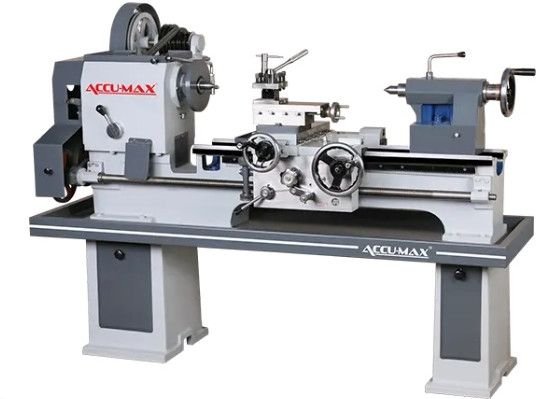

SM Series Medium Duty Belt Driven Lathe Machine

Link Copied

Edit

Business Type	Manufacturer, Exporter, Supplier
Driven Type	Electric
Automation Grade	Automatic
Country of Origin	India
Click to view more

Product Details

Series

SM Series

Material

Cast Iron, Alloy Steel

Bed Material

Cast Iron

Headstock Boring Machine

WMW Boring Machine

Spindle Material

Alloy Steel

Brand Name

Accumax

Featues

The bed is made from cast iron of good hardness, strictly inspected with micro level, hardness tester, and straight edge.
Boring of the headstock is done on WMW boring machine fitted with induction hardened and ground spindle made from alloy steel.
The apron is totally enclosed oil bath system with lever type arrangement for automatic feeds.
Hexagonal shaped tailstock with hardened and ground tailstock spindle made from alloy steel having external and internal grinding.

Standard Accessories

Extra Accessories

Specification

Height of center	215	254 mm
Swing over bed	425	490
Swing over slide	230	300
Swing in Gap	700	770
Width of Bed	275	275
Hole through the spindle	50	80
Toper bore in spindle	M.T. -6	M.T. -6
Spindle Nose	6 T.P.I.	6 T.P.I.
Range of Spindle Speed	30 to 500 R.P.M.	30 to 500 R.P.M.
Spindle Speed	6	6
Metric Threads	1 to 7 mm	1 to 7 mm
Inches Threads	4 to 28 T.P.	4 to 28 T.P.
Lead Screw Diameter	38 mm.	38 mm.
Lead Screw Threads	4 T.P.I.	4 T.P.I.
Tail Stock Spindle Dia	50	50
Taper Bore in Spindle	M.T.-4	M.T.-4
Tails Stock Spindle Travel	150 mm	150 mm
Compound Slide Swivelling Degree	45-0-45	45-0-45
Cross Slide Size	175 mm X 400 mm	175 mm X 400 mm
Cross Slide Travel	235 mm	235 mm
Top slide Travel	125 mm	125 mm
Motor	2 H.P/1440 RPM	2 H.P/1440 RPM
Admit between Centers	600/1000
Length of Bed	1370/1800
