| Business Type | Manufacturer, Exporter, Supplier |
| Height Of Centers | 165 Mm |
| Swing Over Bed | 330 Mm |
| Swing Over Side | 170 Mm |
| Click to view more | |
Product Details
Width Of Bed
240 Mm
Spindle Bore
40 Mm
Spindle Nose
A2-4
Spindle Speed No.
8
RPM
60-1025
Cross Slide Travel
175 Mm
Top Slide Section
125 Mm
Tail Stock Sleeve
MT-3
Quill Dia./Travel
50/125 Mm
Tool Shank Section
20 X 20 Mm
Feeds Longitudinal
No. 60/0.08-1
Feed Transverse
No. 60/0.02-0.25
Metric Thread
40/0.4-7 Mm
Thread Per Inch
45/70-4 TPI
Lead Screw
4 TPI
Main Motor
1.5 Kw
Admit Between Center
600/1000 Mm
Bed Length Feet
4.5'/6'
Brand Name
Accumax

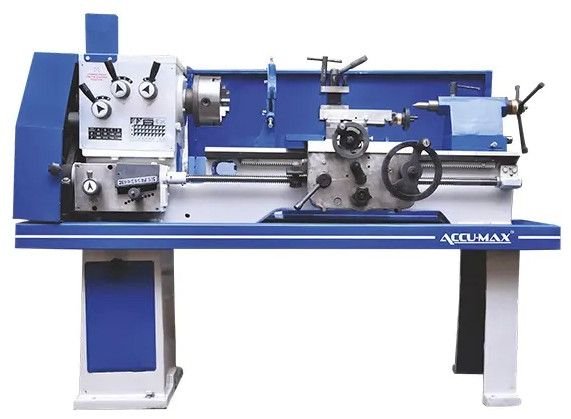

Cutting and finishing are two important operations done for the finishing touch of any designing work and All Geared Lathe Machine is the finest instrument to do both. We are manufacturing high-quality machines of different capacity range and that is according to customer point of view. In the next, we are amplifying the specifications making the product unique and special.
Looking for "Sla Series Light Duty All Geared Single Shaft Lathe Machine" ?
