| Business Type | Manufacturer, Exporter, Supplier |
| Material | Mild Steel |
| Automatic Grade | Automatic |
| Application | Industrial |
| Click to view more | |
Product Details
Height Of Centers
175 Mm
Swing Over Bed
350 Mm
Swing Over Side
190 Mm
Width Of Bed
242 Mm
Spindle Bore
40 Mm
Spindle Nose
A2-4
Spindle Speed No.
8
RPM
48-1535
Cross Slide Travel
180 Mm
Top Slide Section
125 Mm
Tail Stock Sleeve
MT-3
Quill Dia./Travel
50/125 Mm
Tool Shank Section
20 X 20 Mm
Feeds Longitudinal
No. 60/0.08-1
Feed Transverse
No. 60/0.02-0.25
Metric Thread
40/0.4-7 Mm
Thread Per Inch
45/70-4 TPI
Lead Screw
4 TPI
Main Motor
1.5 Kw
Admit Between Center
600/1000 Mm
Bed Length Feet
4.5'/6'
Brand Name
Accumax
Cutting and finishing are two important operations done for the finishing touch of any designing work and All Geared Lathe Machine is the finest instrument to do both. We are manufacturing high-quality machines of different capacity range and that is according to customer point of view. In the next, we are amplifying the specifications making the product unique and special.

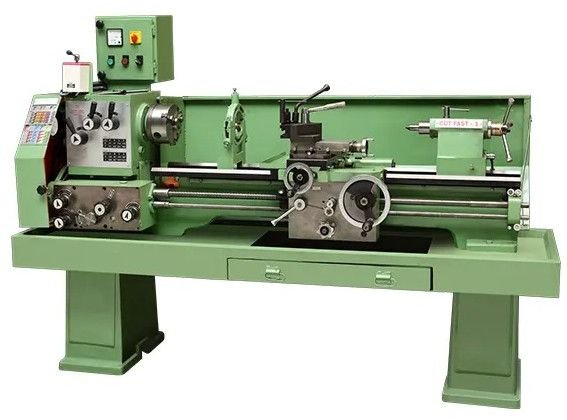

Looking for "Sla Series Light Duty All Geared Double Shaft Lathe Machine" ?
